DESCRIPTION

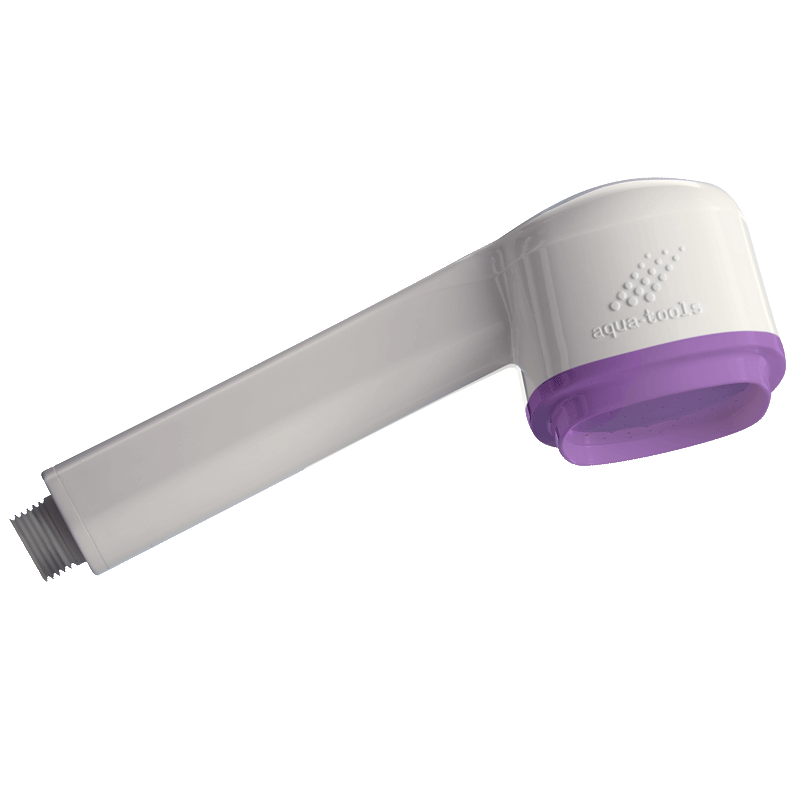

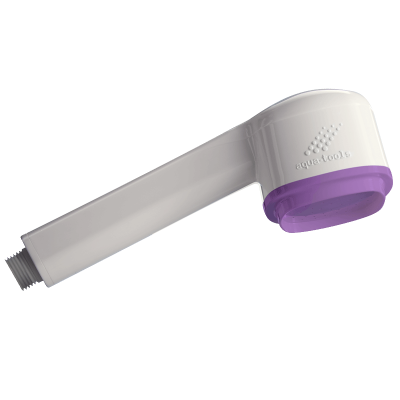

FILT’RAY 1-month shower head filter
Ref. AT030723AQUATOOLS anti-Legionella and all-germ shower filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 11.9 lpm at 3 bar and 4.5 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 1 month from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm for 1 hour
(cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 11.9 lpm at 3 bar and 4.5 lpm at 1 bar
(filter only, excludes any flow rate restriction in the shower).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 1 month from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm for 1 hour
(cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
ADVANTAGES
Anti-Legionella and all-germ
Lifespan: 1 month from installation
Bubl'air Wash: longer filter life

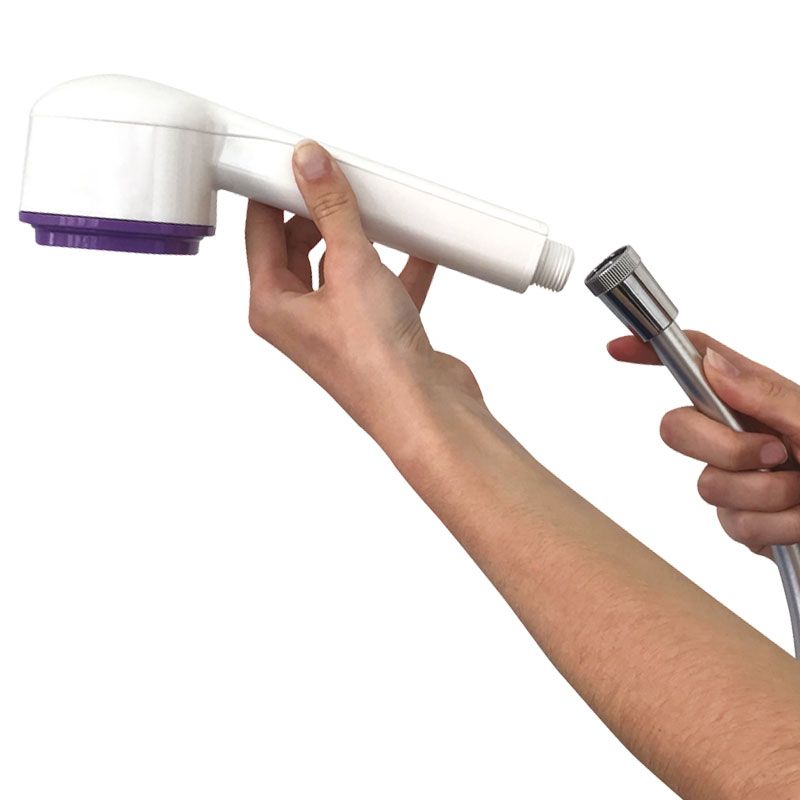

Rapid installation with no tools required
TECHNICAL CHARACTERISTICS
FILT’RAY 1-month shower head filter

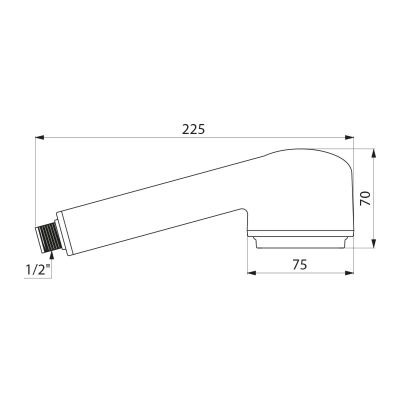

Ref. AT030723Connector | M1/2" |
Technology | Point-of-use filtration |
Height | 70mm |
Length | 225mm |
Flow rate | 11.9 lpm at 3 bar, 4.5 lpm at 1 bar |
Lifespan | 1 month |
Certificates |
VARIANTS
AT030711 | Shower flow |
---|
VARIANTS
AT030711 | Shower flow |
---|
